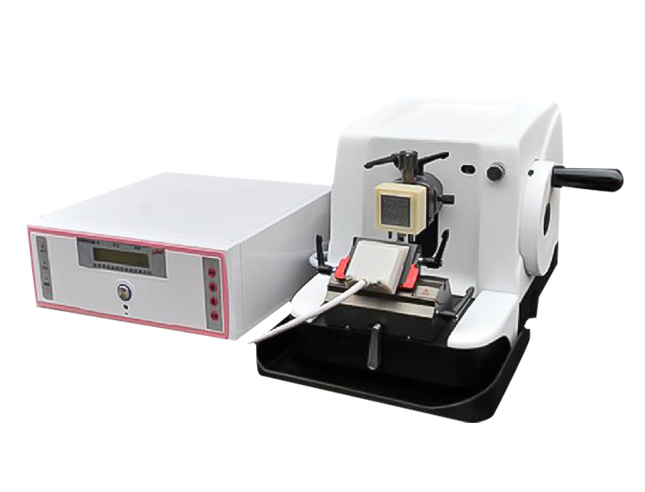

KH-Q360 frozen paraffin (dual purpose) slicer

KH-Q360 frozen paraffin (dual purpose) slicer

Performance characteristics:

1. The tool holder is made of special materials and undergoes a special surface treatment process to ensure smooth and continuous slicing. The wax flakes will not adhere to the tool holder, achieving good slicing effect and quality of slicing.

2. The wax block clamp and embedding box clamp can be quickly exchanged with bare hands for 5 seconds, making it more convenient and efficient for the operator to slice.

3. The disposable blade holder and steel blade holder can be quickly interchanged, which can meet the needs of operators for various specimens during the slicing process.

4. The cold knife cooling table displays preset temperature and real-time temperature on the same screen.

5. It has memory and power saving functions, and automatically retains the set temperature after operation; Automatic constant temperature.

6. Defrosting temperature display, automatic restoration of cooling working state after defrosting, cooling speed of 2-7 minutes can reach the slicing temperature.

7. The cold knife adopts magnetic adsorption, making it easy to operate and disassemble.

Technical parameters:

1. Slice thickness: 0-60um;

2. Slice thickness setting range: 0-2um in increments of 0.5um; Progressing from 2-10um to 1um; 10-20um in increments of 2um; 20-60um progresses in increments of 5um.

3. Horizontal displacement of sample up to 30mm

4. The vertical translation position of the sample is as large as 70mm

5. Freezing table area: 45 × 40mm

6. Slice section: 60 × 40mm

7. Slice at a 45 ° angle between the cold knife and the back of the knife

8. External dimensions: 300 * 570 * 270mm, 360 * 350 * 140mm

Cold box outer box wooden box size (length × wide × High): 54 × fifty × 35cm

Slicer outer box wooden box size (length × wide × High: 58 × forty-eight × 43.5cm
