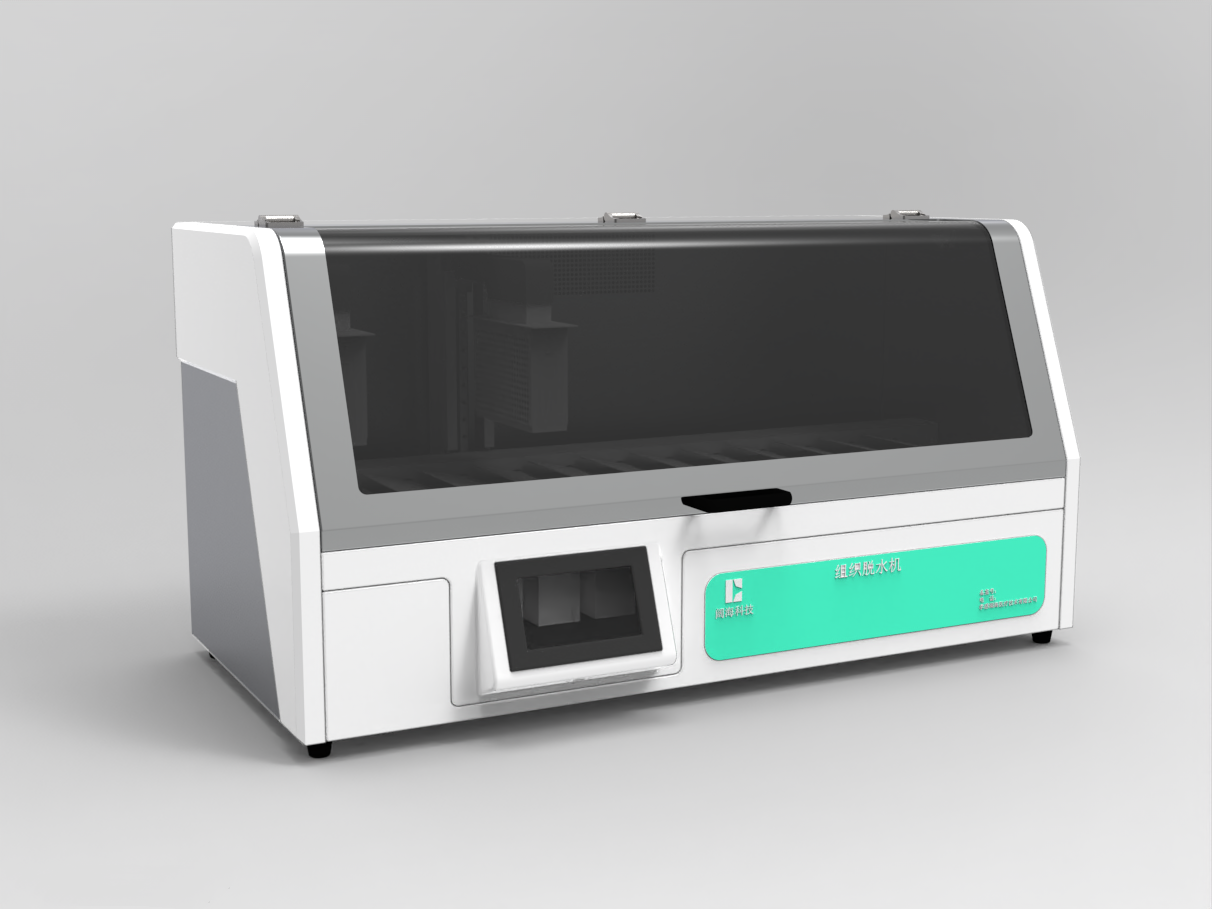

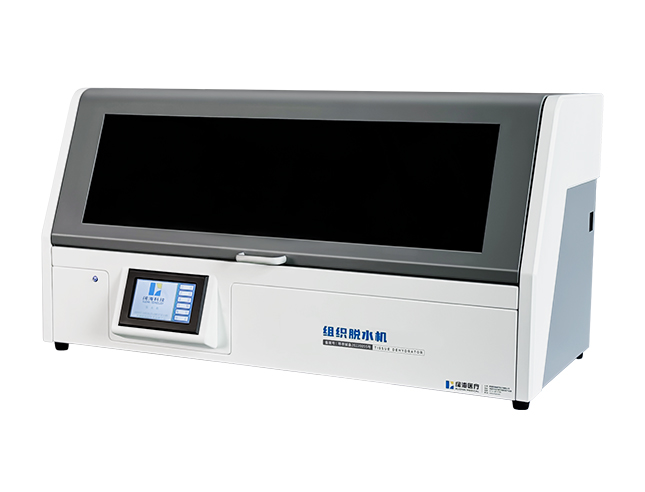

Dual system automatic organization dehydrator

Dual system automatic organization dehydrator

Performance Introduction:

1. Large LCD touch screen with full Chinese menu, easy and clear operation;

2. Adopting intelligent program control technology to comprehensively protect equipment and specimens. Intelligent segmented protection of specimens in case of failure.

3. Equipped with intelligent key function (can operate blindly without looking at the screen), the main function of the dehydrator can operate normally when there is no display on the display screen and the touch function is damaged;

4. The operation screen of the dehydrator displays a "self detection" item, which has an abnormal protection function to prevent jamming of the cylinder, and can display the operating status and various functions in real-time;

5. Multiple sets of running programs and imported core chips can be set up;

6. Powerful and not subject to external magnetic field interference;

7. Remote alarm system, in case of malfunction, the dehydrator can automatically dial the operator's phone number, allowing you to know whether the equipment is operating safely at any time;

8. Precision casting with multiple temperature control protection, adopting a new heating method and low-voltage contactless temperature control technology, making it safer;

9. The new generation of environmental protection design concept adopts dual purification functions: ionizing and decomposing harmful gases, and activated carbon decomposing harmful gases, combined with fully sealed internal circulation filtration to ensure that operators are not harmed by harmful gases;

10. Reasonable single cylinder capping setting and elastic sealing technology to avoid reagent volatilization;

11. An open design that allows for arbitrary setting of the suspension basket's retention time and oscillation frequency for the start-up filtrate, avoiding mixing caused by the introduction of reagents from the previous cylinder into the subsequent cylinder;

12. Small specimens can be added at any time during operation; Flexible programming allows different tissues to start in any cylinder and end in any cylinder, achieving better dehydration effects for different tissues;

13. The horizontal transmission of the dehydration hanging back adopts a steel linear guide rail combined with a stepper motor, making the operation more accurate. The horizontal transmission eliminates the use of steel wire ropes, belts, or synchronous toothed belts. Long term use of the dehydration machine can easily loosen the sliding position, resulting in inaccurate cylinder alignment and jamming, and the organization being dried by air;

14. The lifting and landing back of the hanging basket adopts a dual row two-dimensional soft transmission mechanism, which is stable in transmission, noiseless, and free from hard wear and tear;

15. Power outage protection, in case of sudden power outage, maintains program memory and completes the entire dehydration process.
