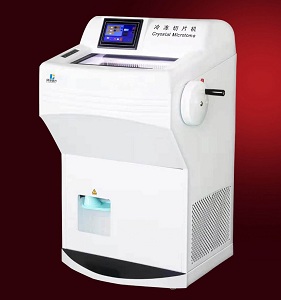

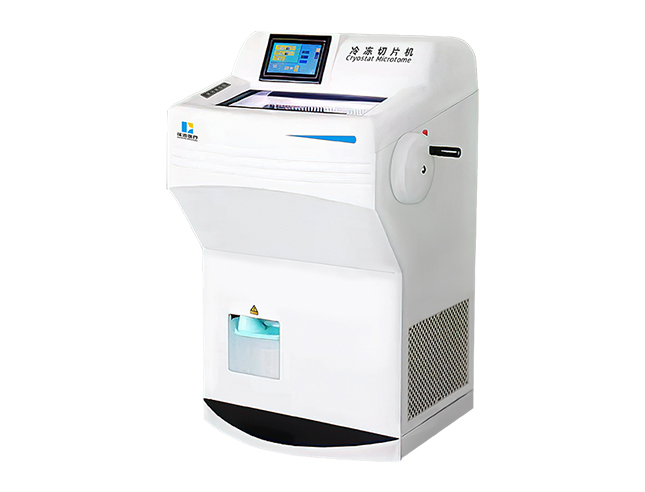

KH-LQ3500 frozen slicer

KH-LQ3500 frozen slicer

Freeze slicing is a technique that uses physical cooling to freeze fresh tissue specimens to produce a certain hardness for slicing. Compared with paraffin sections, frozen sections do not require dehydration and embedding, resulting in faster production speed. They are a good method for providing pathological diagnosis for clinicians undergoing surgery. This machine has the advantages of good stability, high precision, durability, no refueling or maintenance, easy operation, uniform slicing, and continuous slicing. It is a popular instrument for pathological tissue testing departments and technical personnel.

Performance technical parameters:

1. LCD display screen and button operation; Microcomputer control, easy to operate, and easy to learn. The LCD screen displays the total number of slices, slice thickness, total thickness of slices, sample retraction value, temperature, date, time, timing switch, etc;

2. Equipped with handwheel locking function, CNC machine tool processing, designed according to ergonomics;

3. Configure sample retraction function to prevent sample scratches and ensure the integrity of the slice;

4. Key components: Original imported dual compressors from Germany, used for refrigeration of the freezer, cold table, tool holder, and sample head respectively. The imported R404A environmentally friendly fluorine-free refrigerant is selected as the refrigerant;

5. There are two types of defrosting: timed defrosting and manual defrosting;

6. The quick trimming function button allows for easy switching between trimming and slicing modes during operation;

7. Disinfect using UV ultraviolet radiation;

8. Equipped with semiconductor cooling function;

9. Heating detachable glass door;

10. The slicer unit is located outside the freezer, avoiding the impact of thermal expansion and contraction on the unit, and minimizing maintenance and upkeep;

11. Humanized sleep function: After selecting sleep mode, the temperature of the freezer is automatically controlled within the set range. After canceling sleep, the slicing temperature can be quickly reached;

12. The lock keyboard function can prevent incorrect operation.
