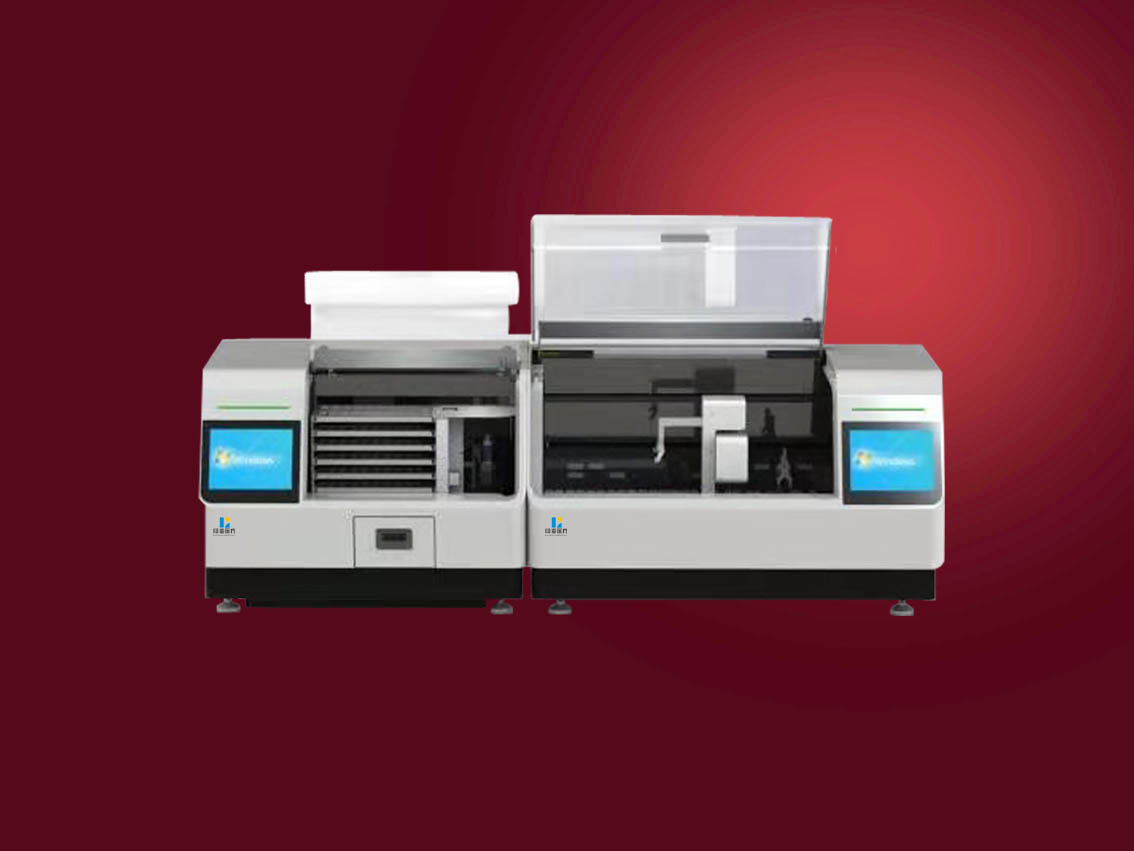

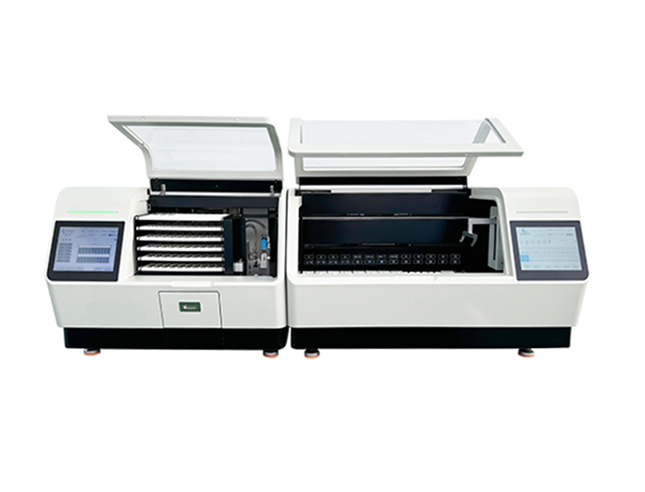

KH-S106 fully automatic dyeing and sealing integrated machine

KH-S106 fully automatic dyeing and sealing integrated machine

Performance characteristics:

1. The dyeing machine and sealing machine form an integrated workstation for dyeing and sealing, without the need for a separate transport device. After dyeing, they are directly transported to the sealing machine for sealing through a robotic arm.

2. Large industrial touch screen, all Chinese operating system, convenient and fast parameter setting, and beautiful interface.

3. The reagent tank is made of metal material, which is durable and has a scale line for easy observation of the liquid level.

4. The motion of the robotic arm adopts a servo integrated system as the executing element, with precise positioning and smooth operation.

5. Chinese voice alarm, panel indicator light RGB three colors prompt, and text indication alarm in the main interface alarm indicator bar, all three alarm synchronization prompts. Operators can process corresponding alarm information based on instrument alarm prompts.

6. The fully open single-layer design facilitates the observation of the liquid level height of the reagent cylinder and the operation status of the instrument. The protective cover adopts cylinder support, which is stable and reliable.

7. Install an air quality sensor inside the instrument to monitor the air quality inside the instrument. The instrument can automatically turn on or off the exhaust fan based on the air quality situation, achieving closed-loop control of the air quality inside the instrument.

8. Different dyeing programs can run simultaneously, and the same dyeing program can add multiple dyeing racks to run simultaneously, without limiting the number of dyeing racks.

9. The running status query function can monitor information such as current execution steps, remaining time, and current dyeing sites.

10. With storage function, reagent addition records, reagent replacement records, and historical operation records can be queried, and quality control management can be carried out through three colors.

11. The sealed slide is directly transported to the slide plate for direct reading, without the need for manual transportation, saving manpower and improving departmental work efficiency.

12. Cover glass allowance reminder: When the cover glass allowance in the cover glass box is insufficient, remind the functional staff to increase the cover glass.
