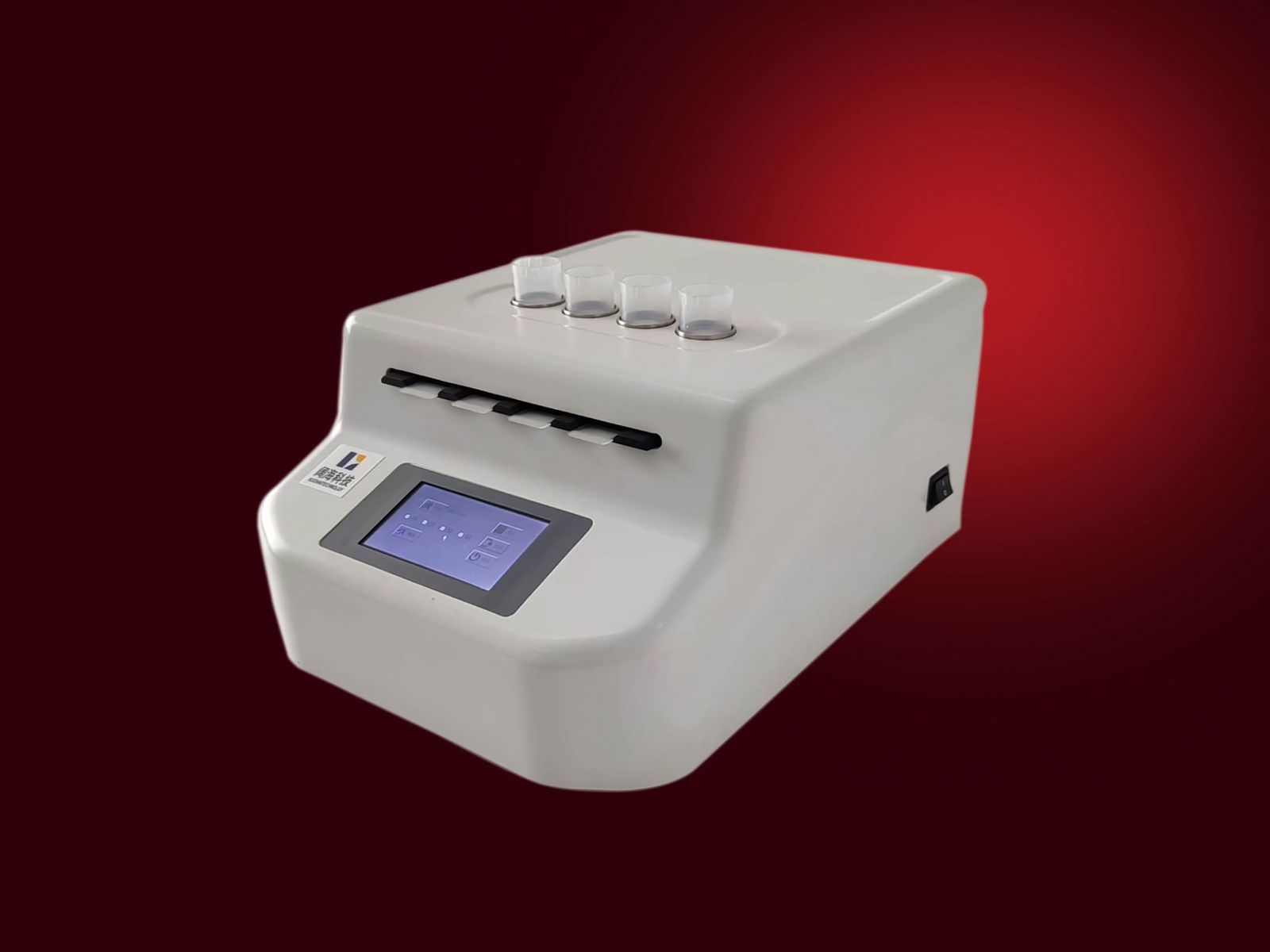

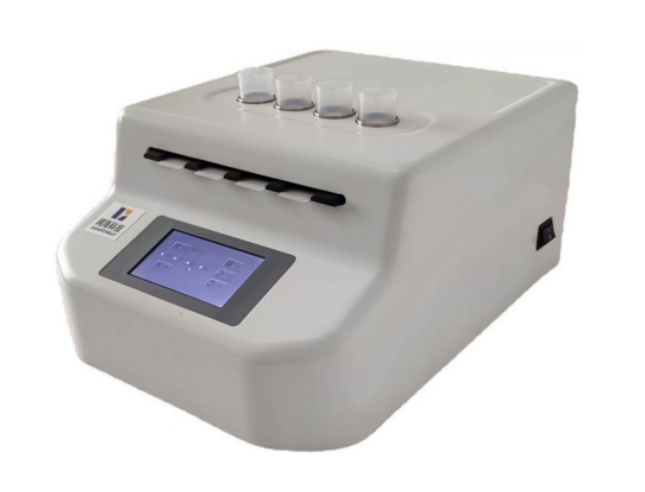

KCT-09 liquid based cell automatic slicing machine

KCT-09 liquid based cell automatic slicing machine

Performance parameters:

1. Microcomputer fully automatic control, cell transfer and sedimentation production, LCD touch screen operation display.

2. The third generation of new technology, double layer filtration: filter large impurities with a mesh, filter the liquid with a membrane to evenly distribute cells on the membrane, and then transfer the membrane to a specially made negative charged glass slide. The cells are evenly distributed on the slide, without overlapping or white patches, and the effective diagnostic components are rich.

3. Integrating advanced technologies such as pressure sensors, balance sensors, and optoelectronic sensors, we have successfully integrated the advantages of membrane production technology and sedimentation production technology.

4. Diversified program selection, suitable for various specimen detection and production, such as cervical, sputum, serous cavity effusion, urine, needle aspirated cells, etc.

5. High speed production: 1-4 pieces can be produced each time, with a maximum of 240 pieces produced per hour.

6. Power supply voltage: AC220V ± 10%, 50 ㎐ ± 1 ㎐.

7. Environmental temperature: Normal temperature.

8. Environmental humidity: 30% -80%.
