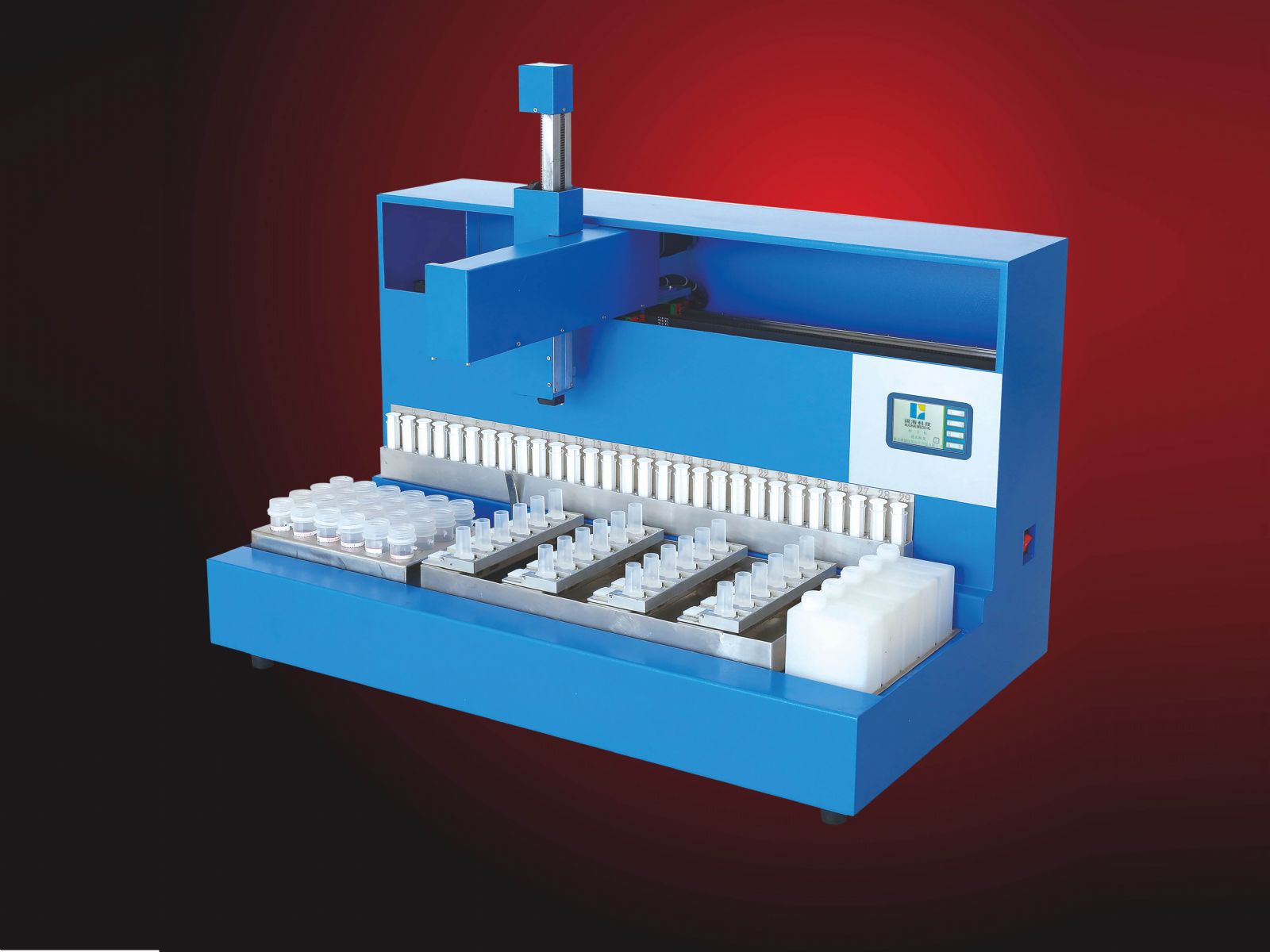

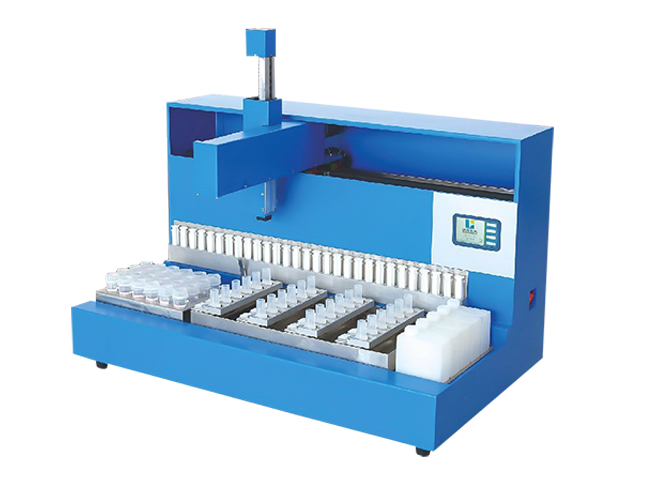

KCT-12 automatic film making machine

Kuohai Technology KCT-12 automatic film making machine (fully automatic, settling type, integrated film making and dyeing)

Performance parameters:

1. The popular cell natural sedimentation method is used for slides, which involves placing reagents containing tissue cells into a sedimentation chamber with a slide at the bottom, then allowing them to settle naturally using cell gravity onto a slide with adhesive function, and being captured by the slide. It is required that the cells on the slide be evenly distributed and do not overlap.

2. Integrated production and dyeing, fully automatic operation, precise control using microcomputer automation.

3. Each batch can produce and stain 1-24 glass slides.

4. Advanced reagent technology: The matched cell preservation solution is environmentally friendly and contains no carcinogenic formaldehyde or xylene components. It has excellent performance in cell preservation, red blood cell lysis, mucus dissociation, sterilization and inactivation.

5. The perfect combination of cell preservation solution bottle and production machine: Cell preservation solution bottle can be used for both centrifugation and production inside the production machine. The production process does not require the use of centrifuge tubes or test tubes, making the operation simple and saving production time.

*6. Adopting the internationally popular cross contamination free single drop staining technology, the cell structure is distinct and clear.

7. The production process uses tissue cells to stand still and naturally settle, so the production stage of the production machine where the slide is located cannot be rotated to avoid affecting the uniform laying of cells and causing cell deformation during production.

8. After production, the production machine can automatically return the supernatant from the settling chamber on the slide to the original cell preservation bottle. This supernatant can also be used for HPV and other related projects.

9. Production mode: The system is equipped with eight working modes, which can meet the production requirements of different specimens. It is suitable for the processing and production of cervical specimens, pleural and ascites, sputum, urine, cavity effusion, cerebrospinal fluid, puncture fluid, organ flushing fluid, and other specimens.

10. It has the function of automatically pouring waste liquid, which can pour out all the waste liquid in the settling tank at once, saving a lot of time.

11. Rated power: ≤ 500W

12. Voltage: AC 220V ± 10% Power supply 50 ± 1Hz
