KH-CX gross specimen imaging system

KH-CX gross specimen imaging system

The gross specimen imaging system is a comprehensive system solution instrument specialized in imaging biological tissue specimen gross photography, measurement, personalized image processing, and various data calculation and analysis of images. It is mainly widely used in hospitals at all levels, medical colleges, forensic appraisal, animal and plant inspection and quarantine, and biological tissue research units. Provide invaluable diagnostic databases for pathological sampling, teaching, scientific research, and other work. And it can significantly reduce the transit time of samples at the sampling workstation.

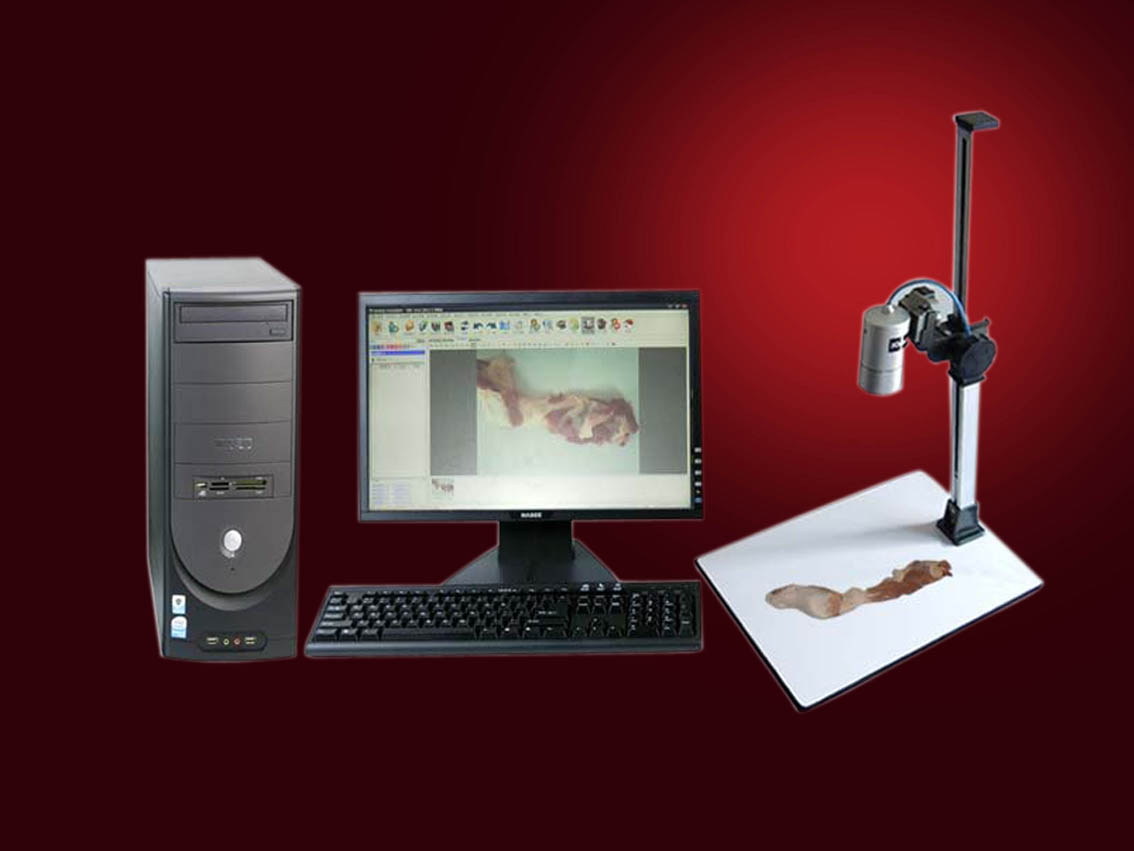

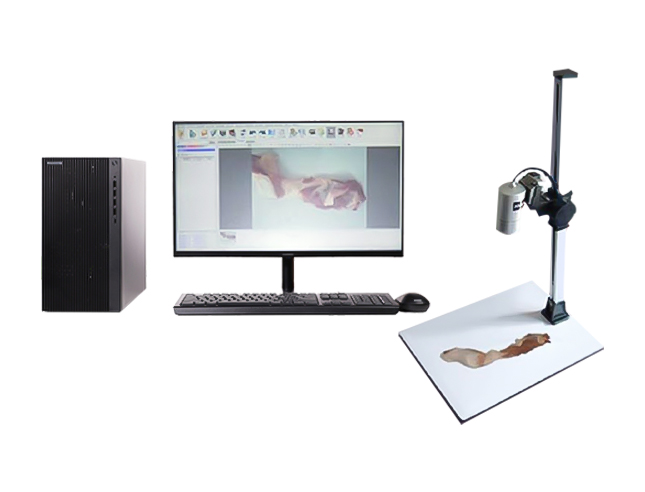

The main components of the hardware are: (computers and trolley or bracket equipment are self accessories)

1. High definition professional camera equipment: high-definition camera, dedicated digital camera (with high-level resolution, realistic color reproduction, and fast response speed);

2. Shooting lifting platform: Equipped with a lifting structure and a photography fine adjustment device, it can be adjusted to the best position at will, and can shoot specimens of different sizes and colors at different distances

3. The loading platform comes with a corrosion-resistant and pressure resistant stainless steel platform and a reinforced PBS material platform to choose from. Adopting a stainless steel specimen tray design, the specimen tray can be disinfected separately;

4. Shadow removal lamp: The shooting light source adopts a daylight light source, which reduces the temperature of the light outlet and minimizes the impact on the specimen. It is a direct plug-in connector for easy connection;

5. A dedicated general sampling software package that allows for personalized development and design according to different users, with multiple image formats for storage and report formats for sending; And can be combined with different pathological graphic and text reporting software for use;

Performance characteristics:

A server that provides dynamic, state taking, and storage of human specimens;

Foot pedal and manual focus shooting to obtain high fidelity images;

The voice intercom system between the sampling doctor and the recording personnel always maintains consistency in both graphics and text (can be selected and equipped with the sampling station);

Supports two methods of digital and analog autofocus acquisition (with optional hardware according to user requirements);

Large corrosion-resistant countertop with stainless steel scale;

Adjustable lifting pan head, self-locking at any position;

Support image background correction, brightness, contrast, hue, angle, RGB, image scaling, and other adjustments;

Provide various image editing and processing functions (measurement and marking of length, area, angle);

Built in a large number of editable diagnostic templates for personalized editing by different medical institutions. (histopathology, TCT cytology, immunohistochemistry, TBS reporting, autopsy, etc.);

Support batch information input and corresponding batch image collection;

Open source code design that can perform barcode scanning and automatically locate pathological information in the hospital's HIS system;

Retrieve patient history examination information and compare text and images on the same screen;

Operating environment: original Intel dual core processor host, 19 inch LCD display;

Operating system: Supports Windows XP (SP2)/Vista/Win 7/Win 8 (32-bit systems);

Interface/power supply: USB2.0, no external power supply required;

Environmental temperature: 0 ℃ -60 ℃
